4 Station CE style N Range.030-.984” ,8-25,mm PUNCH Grind Life: .060”/1,5mm Minimum length 2.795/71mm DIE Grind Life: .06”/1,5MM Minimum length=.728/18,5mm |
|
7 or 8 Station CE style P Range.030-.629 ,8-16.mm PUNCH Grind Life: .060”/1,5mm Minimum length 2.795/71mm DIE Grind Life: .06”/1,5MM Minimum length=.602/15,3mm |
|
6 Station CE style O Range.030-0.787” 8-20.mm PUNCH Grind Life: .060”/1,5mm Minimum length 2.795/71mm DIE Grind Life: .06”/1,5MM Minimum length=.7282/18,5mm |
|
MTN MTO MTP |
|
|
|
CE TOOLING . |
|

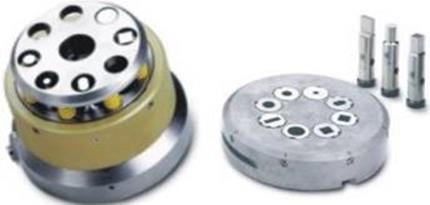

BOSCHERT REVO MULTI-TOOL |
|
STYLE |
Shape |
Punch M2 Steel CATALOG CODE |
Die A2 Steel Slug Trap™ CATALOG CODE |
|
N 4 Sta. |
Round |
MTNP-r |
MTND-r |
|
Shape |
MTNP-s |
MTND-s |
|
|
O 6 Sta. |
Round |
MTOP-r |
MTOD-r |
|
Shape |
MTOP-s |
MTOD-s |
|
|
P 7 or 8 Sta. |
Round |
MTPP-r |
MTPD-r |
|
Shape |
MTPP-s |
MTPD-s |
