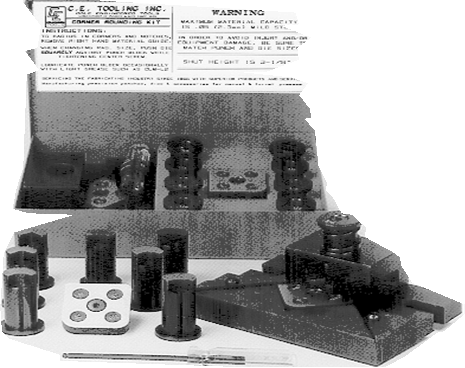

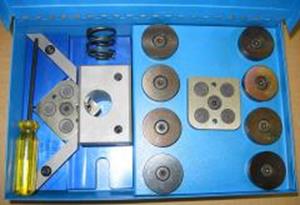

CORNER RADIUS KIT  Metric or Inch Versions



CE TOOLING Radius Kits

HAND PUNCH

Easily shear 8 different sized radius corners



The Corner Radius Kit takes the “Pain” out of corner rounding.  This unique, self-contained unit requires only a vertical “hit” from a mach. press, brake, etc... (soft hammer on a bench for short runs) to produce clean corner radii on sheet stock up to 13 gage mild steel.  Precision self-aligning punches and dies make 30 second changeover common.



Inch Fractional Unit: Part# E-RK1002

1/16, 1/8, 3/16, 1/4, 5/16, 3/8, 7/16 & 1/2

Metric Unit: Part# E-RK1001

2, 3, 4, 5, 6, 8, 10, 12





 Shut ht. 3 1/8  •   Base 5” x 6 1/4

 •  box 10 1/2 x 6 1/2   •  wgt 13 lb.
