CE TOOLING DIE SETS COMPOUND, HAND OR PROGRESSIVE |
|
We design and produce dies in our own factory and supply though partnering with other manufacturers. |
|
Example of HAND DIE SET: Operator sets blank into die. |
|
Example of PROGRESIVE DIE SET: Part falls through die into parts catcher. |
|
Information Required from Customer To Quote a Stamping Die Set: Customer machine specifications: Make: ______ Model: ______ Tonnage: _____ Press type Hydraulic or Flywheel: _____ Shut Height (to top of bed): ________ Stroke: _____ Slide Adjustment:_____ Shank Hole Diameter:_____ Part Volume: Estimated Annual Quantity of parts: _____ |
|

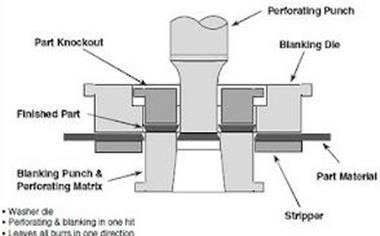

Example of HAND Compound Die Blanks and perforates a part at the same time. In most cases this operation perforates a hole or holes down, while the part blanks up. Slugs from those holes fall through the die. Operator or Pneumatics then ejects blank. |
